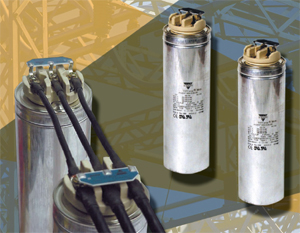

Power Capacitor

  Model ACMKP


Power Capacitor


ESTAdry® ACMKP Low-Voltage
Power Factor Correction Capacitors


KEY BENEFITS
• Compact design with high outputs up to 30 kvar
• Very low losses < 0.25 W per kvar
• Optimized diameter and height for excellent heat dissipation
• Stacked assembled winding elements reduce the risk of device breakdown
• Highest overcurrent capability up to 3 times rated current
• Highest inrush current capability of 300 times rated current
• Life expectancy of > 130,000 operating hours

APPLICATIONS
• Recommended for power factor correction in low-voltage applications ≤ 1000 V
