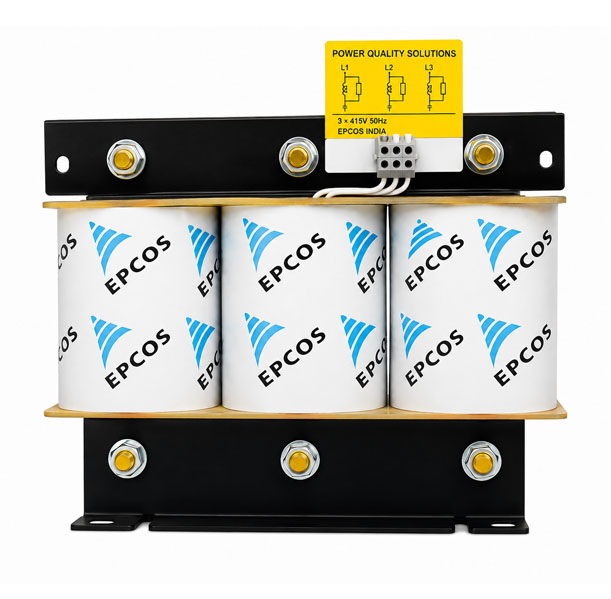

- Effective Filter output 5 kVAr to 100 kVAr
- Filtering factor: (5.67%,7% and 14% corresponding to tuning frequencies of 210 Hz, 189 Hz and 134 Hz, for fundamental frequency of 50 Hz)
- Rated Voltage: (230 V to 690 V) Available in three designs :
- Aluminum Foil Wound
- Aluminum Strip Wound
- Copper Conductor Wound
- High Linearity up to 208%
- Low loss design, light weight and low noise level < 65DB
- High over loading capability
- Safety device - bimetallic microswitch in central winding
- Type tested at CPRI.
Key Components for Capacitors
