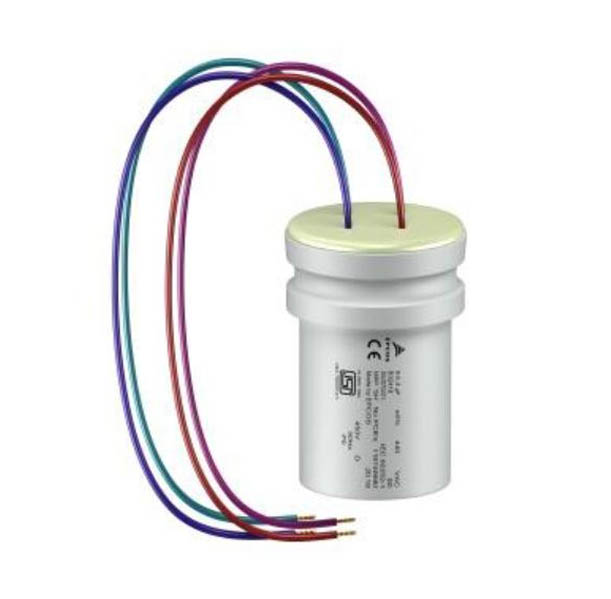

The B32418 Dual MotorCap is an AC capacitor designed primarily as a motor run capacitor for washing machines. It operates at a rated frequency of 50/60 Hz and features flexible lead wires, with receptacles available on request. The capacitor uses a plastic case construction and is designed with S0 safety class according to IEC 60252-1 / P0 according to IS 2993:1998.
The available capacitance configurations range from 5.3 + 2.1 µF to 15 + 4 µF, with a standard voltage rating of 440 Vrms. Capacitance tolerance is specified as ±5%, unless otherwise requested.
- For general sine wave applications, mainly as motor run capacitor for washer.
