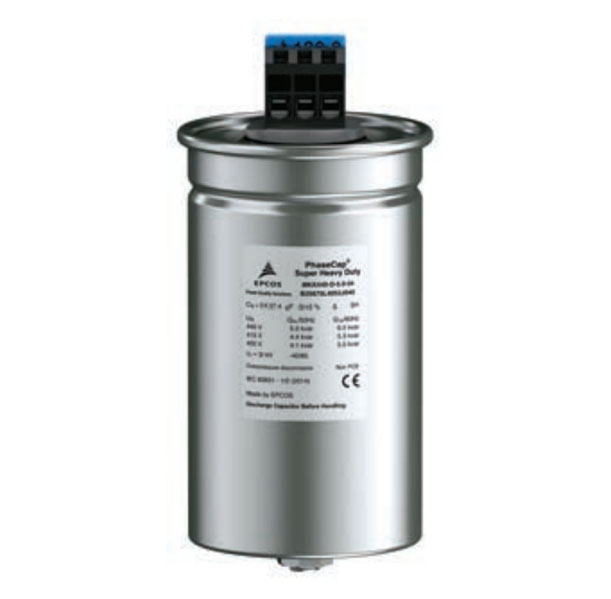

1 to 50 kvar Single Unit | Voltage : 415 V to 690 V (800/1000 V on request)
- Manufactured using state-of-art wavecut technology for MPP film with heavy edge
- Self healing property
- Low energy consumption
- Capable of withstanding high inrush current (Upto 500 IR)
- Very High life expectancy up to 2,40,000 Similar to product profile operating hours (-40/D)
- Capable for 15,000 switching per year to handle dynamic loads
- Three phase safety device in the form of pressure sensitive (over pressure) mechanical interrupter
- Compact size and light weight
- Soft biodegradable resin as impregnant.
- Temp class: -40°C to 60°C
Conformance to Standards: IEC 60831-1 & 2, EN60831-1 & 2, IS:13340
- Automatic PFC equipment, capacitor banks
- Individual Fixed PFC (e.g. motors, transformers, lighting)
- Group fixed PFC
- Tuned and detuned capacitor banks
- Dynamic PFC
