Power Distribution Products

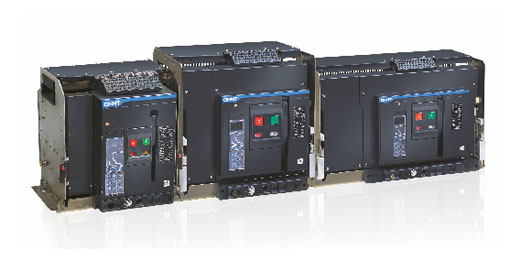

ACB (Air Circuit Breaker)
Main Technical Parameters
- Standard: IEC 60947-2
- Frame Sizes: 1600, 2000, 3200, 4000, 6300
- Number of Poles: 3P, 4P
- Operating Current: 400A ~ 6300A
- Operating Voltage: 380/400/415V, 440/525/690V
- Operating Frequency: 50/60Hz
- Insulation Voltage: 1000V
- Impulse Withstand: 12kV
- Braking Capacity: Up to 120kA

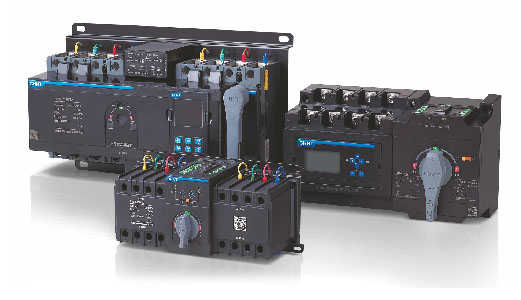

ATS (Automatic Transfer Switch)
Main Technical Parameters
- Standards: IEC 60947-1, IEC 60947-6-1
- Frame Sizes: 63, 125, 160, 250, 400, 630, 800
- Number of Poles: 3P, 4P
- Operating Current: 10 ~ 800A
- Operating Voltage: 400/415V
MCCB (Molded Case Circuit Breaker)
Main Technical Parameters
- Standard: IEC 60947-2
- Rated Operation Current: 16 ~ 1600A
- Rated Operational Voltage: Up to 415V at 50/60Hz
- Rated Insulation Voltage: Up to 1,000V
- Breaking Capacity: 15 ~ 70kA
- No. of Poles: 2P, 3P, 4P
CHINT PRODUCT RANGE
