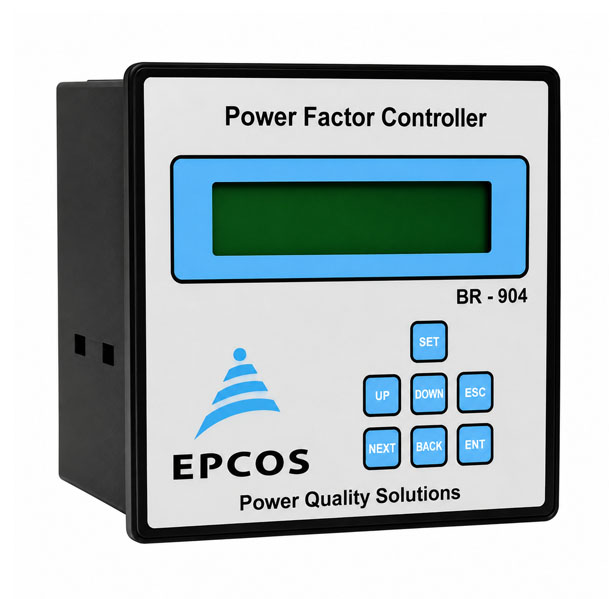

- Steps - 4, 6 and 8 relay outputs
- Current Input - 1A or 5 A
- Supply Voltage - 110 V AC-550 V AC
- Measurement Voltage : 30...550 V AC (L-L/L-N)
- Operating temperature : 0 to 60°C
- Compact 96 x 96 x 75 mm
- Adapter plate for 144 x 144 cut out can be provided for BR4000-ER and BR4000-S
- Voltage
- Current
- Temperature
- Energy KWh, KVAh, KVARh
- Real time PF
- Power KW, KVA, kVAr
- Harmonics % ITHD, %VTHD, individual up to 31st
- Intelligent control
- Large measurement and input voltage range
- User friendly operation
- Individual harmonics up to 31st order
- Four quadrant operations RS 485 communication/real time clock (optional)
- 4 steps variant upgradable to 6 and 8 with additional module
- Configurable alarm output for variousparameters
- Recall recorded values for 10 various important parameters.
